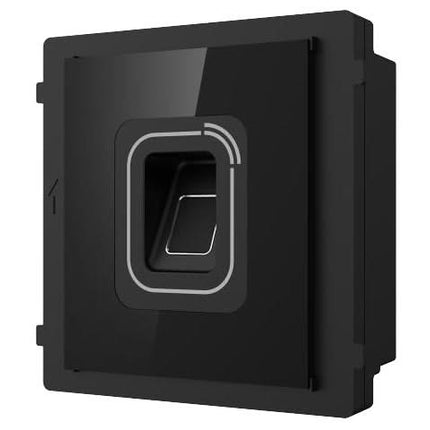

Hikvision DS-KD-MFB, fingerprint and card reader module

Product form
Delivery time — 1 to 2 business days
Delivery is being calculated...
Estimated delivery date is loading...

€198,00€163,64 Incl. VATExcl. VAT

in3
Betaal in 3 termijnen met in3

Betaal €66,00 per maand, zonder extra kosten

    • Pay afterwards within 30 days - both private and business

      <p>Pay afterwards within 30 days - both private and business</p>

    B2B Installers order with discount

    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation
    • Free returns within 14 days

    check Associated products for Hikvision DS-KD-MFB, fingerprint and card reader module

    Barcode: 6942160464046

    Size chart

    HikVision Video Intercom module, Submodule fingerprint and card reader M1, Desfire card, powered via main module, mounting accessories not included.

    To be installed with accessories (not included) in or surface mounted , powered via main module, RS485 communication, IP65

    Specifications:

    • Capacity
    • Fingerprint capacity - 1000
    • Card capacity - 6000

      Authentication
    • Card reading frequency - 13.56 MHz
    • Card reading distance - 2 cm
    • Card type M1, Desfire card

      Device interfaces
    • DIP switch - 8 bits
    • RS-485 - 1

      General
    • Installation - Flush mounting, surface mounting
    • Protective level - IP65
    • Working temperature - -30 °C to 60 °C
    • Working humidity - 10% to 90% (no-condensing)

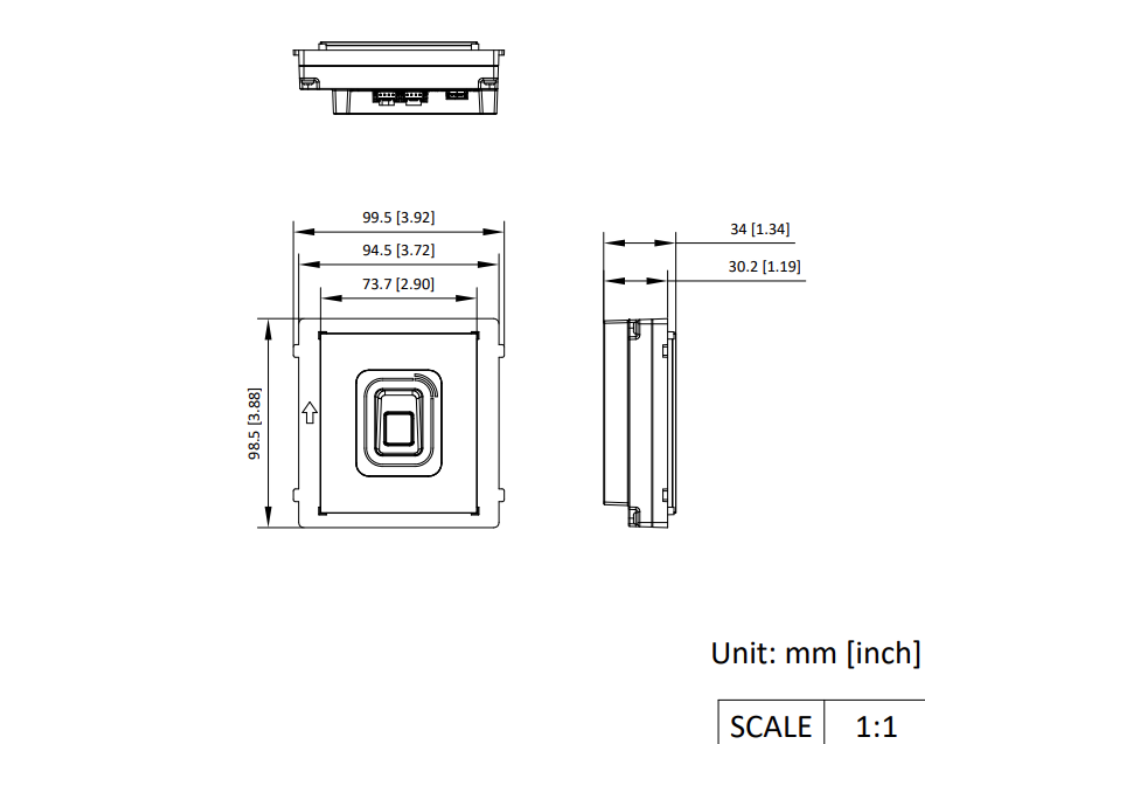

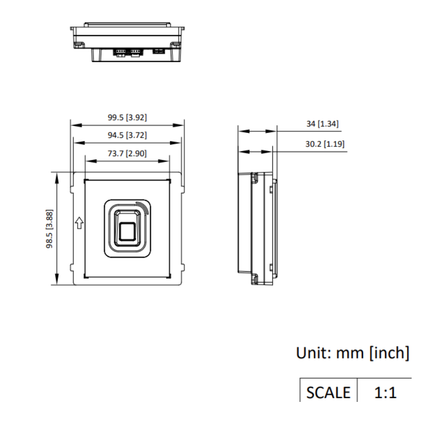

    • Dimension - (W × H × D) 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
    • Power supply - 12 VDC, supplied by the main module
    • Power consumption - ≤ 4 W
