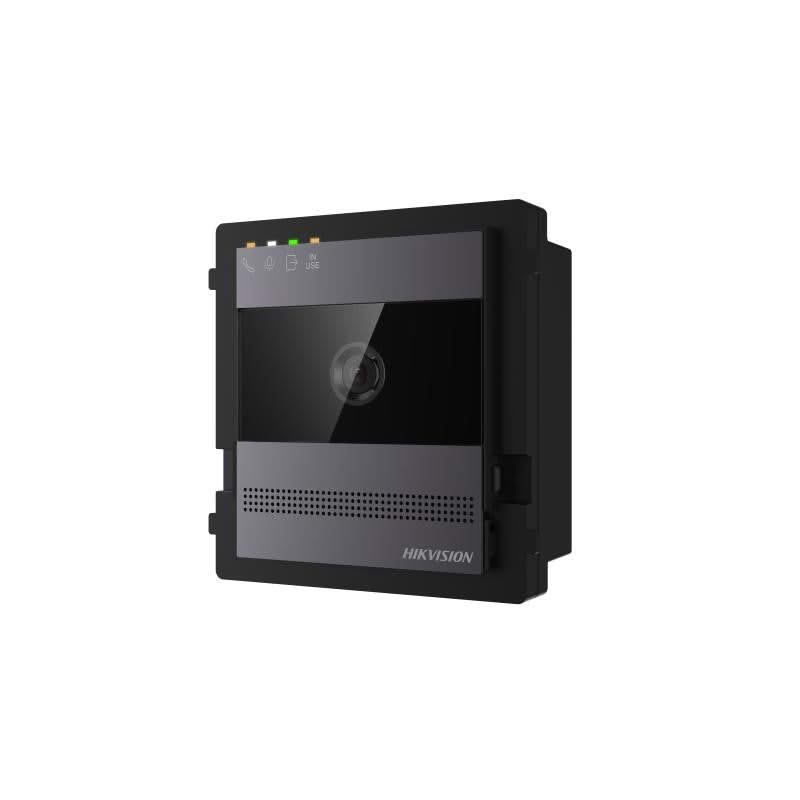

The DS-KD7003EY-IME2 2-Wire HD Outdoor Main Module (Aluminum) is a module commonly used in apartment buildings and multi-story residences with a single front door. By combining this module with, for example, the 6- and 12-button call buttons, along with a surface-mount or flush-mount housing for two modules, you can build a great system.
This is a modular intercom unit for two-wire systems. The camera features a 2MP lens (1920x1080 Full HD). The system can be easily expanded by adding a module from the series (doorbell buttons or other modules, Mi-Fare EM readers, etc.). These can be easily connected to the base unit. The module is equipped with a microphone and speaker.
This module includes 1 doorbell button and an HD camera with a resolution of 1920 x 1080 px and a viewing angle of 133° horizontally and 82° vertically. The video is compressed using the H.264 codec. Audio transmission is handled by a built-in microphone and speaker. The videophone can be connected to the network via Ethernet (1x 10/100 Mbps). The videophone can be powered via a 12V DC connection on the terminal block or via a 2-wire power supply, which also serves to transmit data to the distribution unit (DS-KAD7060EY). Power consumption is less than 6W. The module is IP65-certified for outdoor use.
This modular solution is a first in the intercom range, allowing you to configure the entire system exactly according to the customer’s wishes. Surface-mount and flush-mount boxes are available.
Specifications:
System Parameters
- Operating System: Embedded Linux operating system
- ROM: 4 GB
- RAM: 256 MB
- CPU: Embedded Processor
Display Parameters
- Screen Size: N/A
- Operation Method: NA
- Type: NA
- Resolution: NA
Video Parameters
- Supplementary Light: Low illumination, IR supplementary lights
- Video Standard: H.264
- Lens 1
- FOV: Horizontal: 133°, Vertical: 82°
- WDR
- Supported Resolution: 2 MP
Audio Parameters
- Audio Compression Standard: G.711 U, G.711 A
Audio Input
- Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Compression Bitrate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
Capacity
- User Capacity: 2,000
- Linked Indoor Station Capacity: Max. 99
- Sub-Door Station Capacity: 16
Network Parameters
- Wired Network: 10/100 Mbps self-adaptive via 2-wire interface
- Wi-Fi: AP mode only for configuration
- Bluetooth: Not Available
- 3G/4G: Not Available
Device Interfaces
- Alarm Input 2 (supports Exit button or door contact input)
- Network Interface: NA
- TAMPER 1
- Exit Button 1
- Door Contact Input 1
- RS-4852 (RS-485 output for Hikvision submodule communication; RS-485 reserved)
- WiegandNA
- TF CardNA
- Alarm OutputNA
- DIP Switch: 6-digit DIP switch
- Lock Control: 2 (1 relay, max 30 VDC, 2 A; 1 DC pulse, 20 V, 4 A impulsive, 300 mA holding current, max 30 ohms)
- Power Interface: 48 V, powered by distributor DS-KAD7060EY or 12 VDC
- Two-Wire IP Interface 1
General
- Button 0–2 (flexible adjustment)
- Installation: Surface mounting & flush mounting
- Indicator: 4 LED lights (Door open? Call? Intercom? In use)
- Weight: With packaging: 426 g (0.94 lb); Without packaging: 290 g (0.64 lb)
- Protection Rating: IP65, IK08
Operating Temperature
- -40° C to 60° C (-22° F to 140° F)
Operating Humidity
Dimensions
- 99.5 mm × 98.5 mm × 35 mm (3.92" × 3.88\" × 1.37\")
Battery
- Power Supply: 48V, powered by distributor DS-KAD7060EY or 12VDC
- Operating Environment: Outdoor
- Power Consumption: ≤ 6 W
- Language: English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
