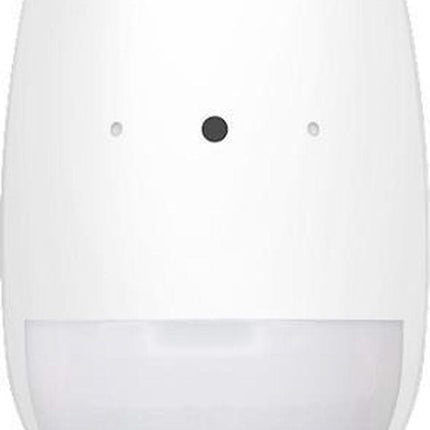

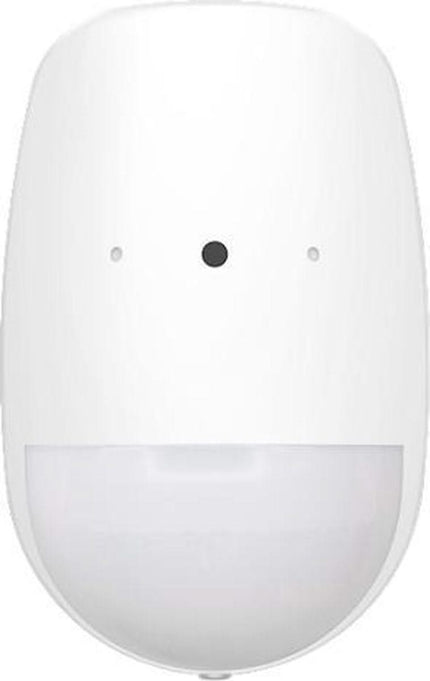

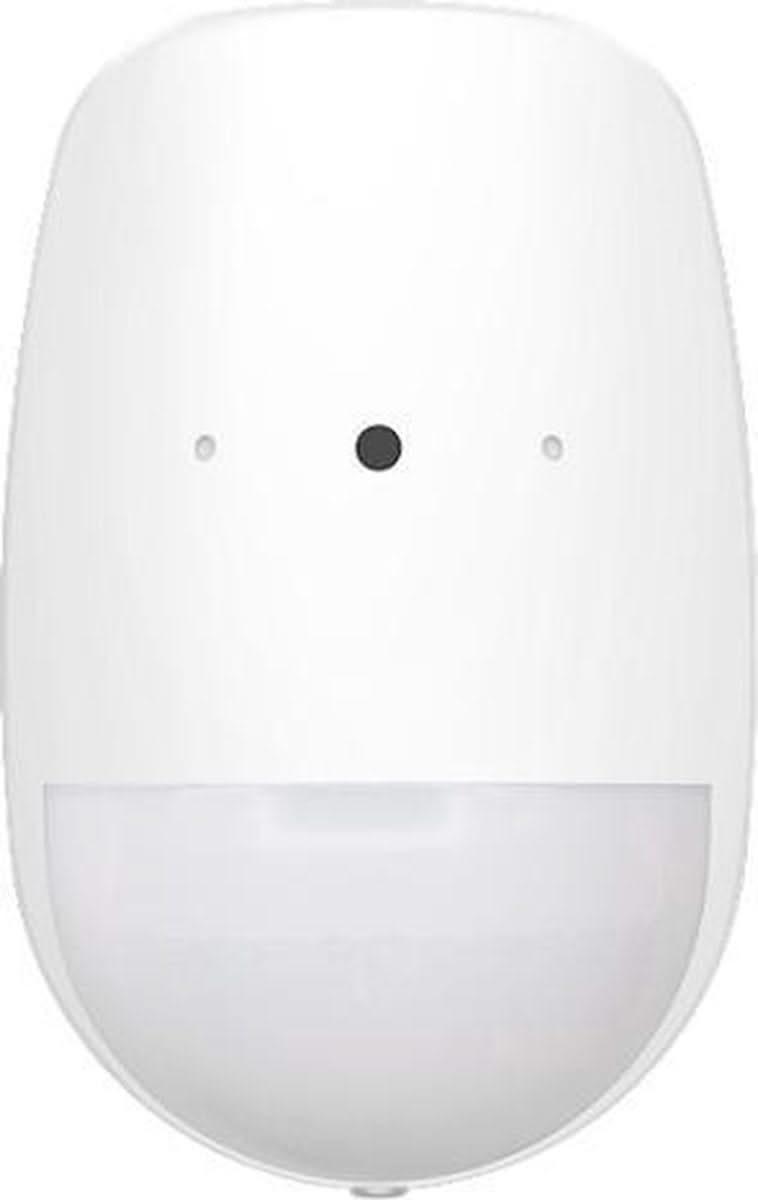

Hikvision DS-PDPG12P-EG2, wired PIR glass breakage detector

Product form
Delivery time — 1 to 2 business days
Want your whole order delivered quickly?

Choose items that all show “In stock — ready to ship”. Fast delivery applies when every ordered quantity is available. If one item has a longer delivery time, we dispatch your order once it is complete. The longest delivery time then applies.

We dispatch every day except Saturday and Dutch public holidays. For items not in stock, we count business days (Monday to Friday), excluding Dutch public holidays. Supplier or carrier delays may affect the estimate. A delivery date is not yet available for reservations.

Estimated delivery within 1 to 2 business days.

€79,00€65,29 -19% -19%
€64,00€52,89 Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Bancontact
    • Bizum
    • BLIK
    • Google Pay
    • iDEAL Wero
    • Maestro
    • Mastercard
    • MobilePay
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    • Pay afterwards within 30 days - both private and business

      <p>Pay afterwards within 30 days - both private and business</p>

    B2B Installers order with discount

    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation
    • Free returns within 14 days

    Barcode: 6931847127930

    Size chart

    DS-PDPG12P-EG2, wired PIR glass break detector

    • PIR detection range: 12m / 85.9°
    • Glass breakage range: 8m / 120°
    • Up to 30KG pet immunity
    • Selectable EOL resistors
    • 9-16 VDC wide voltage adjustment with reverse polarity protection

    Technical specifications:

    Detectie Prestaties

    • Detection Method passive infrared; acoustic sensor
    • Detectiebereik 12m
    • Detectiehoek 85,9°
    • Detectiezones 52
    • Detectable speed 0.3 ~ 2 m/s
    • Huisdier Immuniteit 30Kg
    • PIR-gevoeligheid Auto, Pet
    • Witlichtfilter 6500lux
    • Glasbreuk Bereik 8m
    • Type of glass Float; Plate; Knotted; Wired; Laminated Lead; Double Glazing
    • Glass Breakage Sensitivity Potentiometer Adjustment
    • Glass Thickness 2.4 mm to 6.4 mm
    • Support for digital temperature compensation
    • Glass size 0.3mx 0.3m to 3m x 3m
    • Support for creep zone protection

    Featuring

    • Ondersteuning bij digitale verwerking
    • Verzegelde optische ondersteuning
    • Sabotagebeveiliging voorzijde

    Koppel

    • Alarmuitgang Normaal Gesloten
    • LED indicator Green (PIR), Red (BG), Blue (alarm)

    Overdragen

    • Overdrachtsmethode Bedraad

    Elektrische kenmerken

    • Stroomverbruik 36mA Max
    • Power supply 9 to 16 VDC
    • Typical voltage 12 VDC

    Algemeen

    • Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
    • Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)
    • Bedrijfsvochtigheid 10% tot 90%
    • Dimensions (WxHxD) 65.5 mm × 103 mm × 48.5 mm
    • 98,5 g
    • Mounting height 1.8 to 2.4 m
    • Montagemethode Muur
