    Jablotron JB-111N BUS signal output module PG

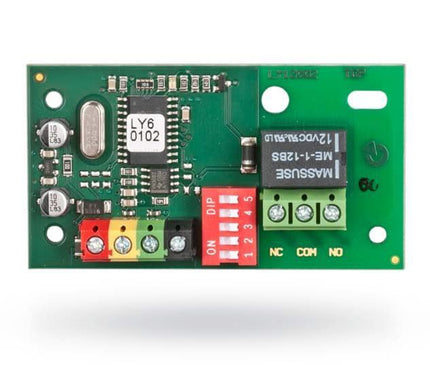

    The Jablotron JB-111N BUS signal output module PG is designed to make available a changeable output delay (8 A) with a NO or NC setting. An appropriate PG output is controlled via DIP switches (controlled 1 of 32 different DIP switches) . The module communicates and is powered by means of the bus connection on the central unit. The JA-111N can be installed in the JA-190PL housing. This module does not occupy any additional space in the zone file.

    - Power supply: via the BUS of the central unit , 12V (9 - 15 V)
    - Power-off current consumption: 5 mA
    - Power-on current consumption: 25 mA
    - Maximum output relay load: maximum 1 A/30 V DC
    - Minimum switching current: 10 mA
    - Environment in accordance with EN 50131-1, EN 50131-3: II, indoor
    - Operating temperature: -10 to 40 °C
