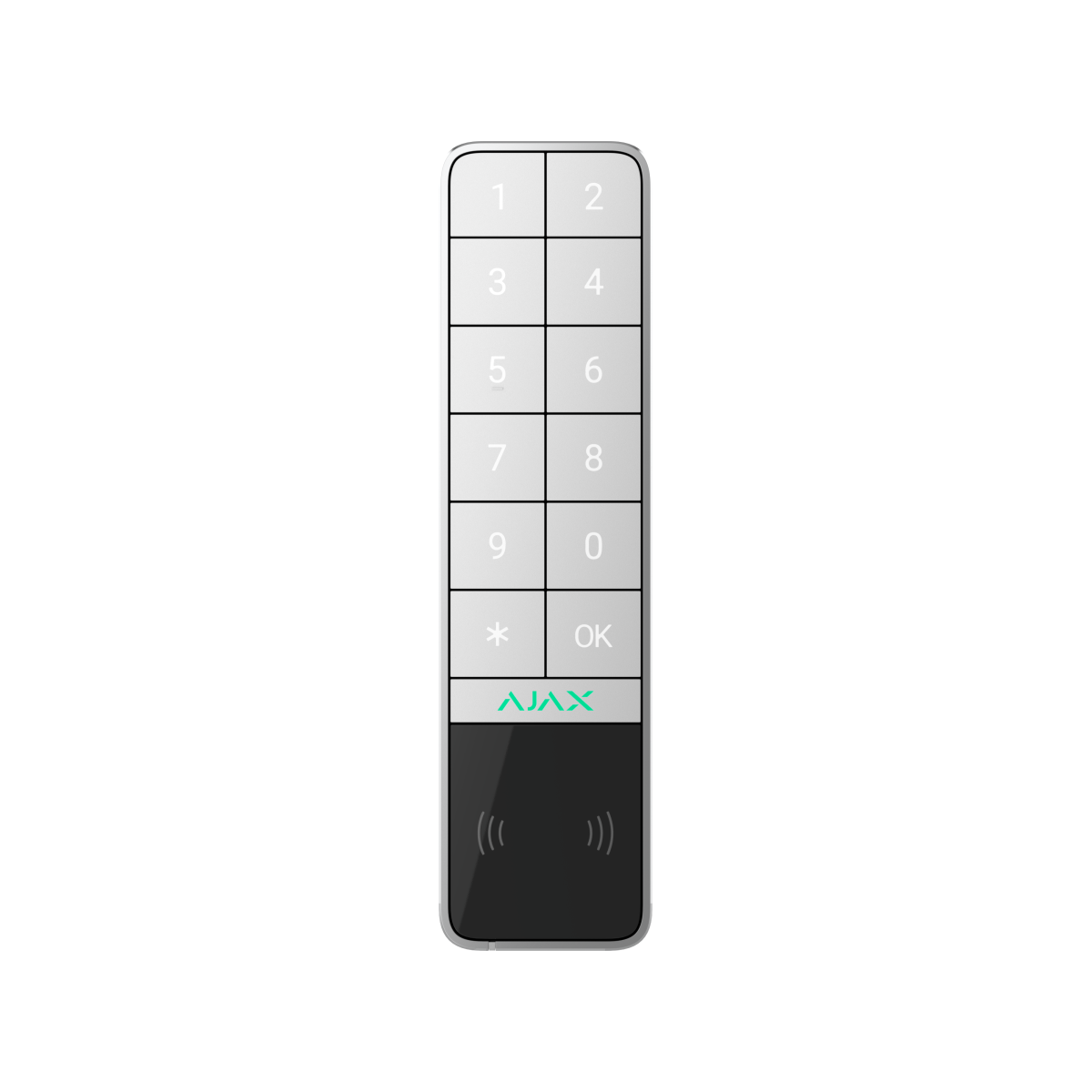

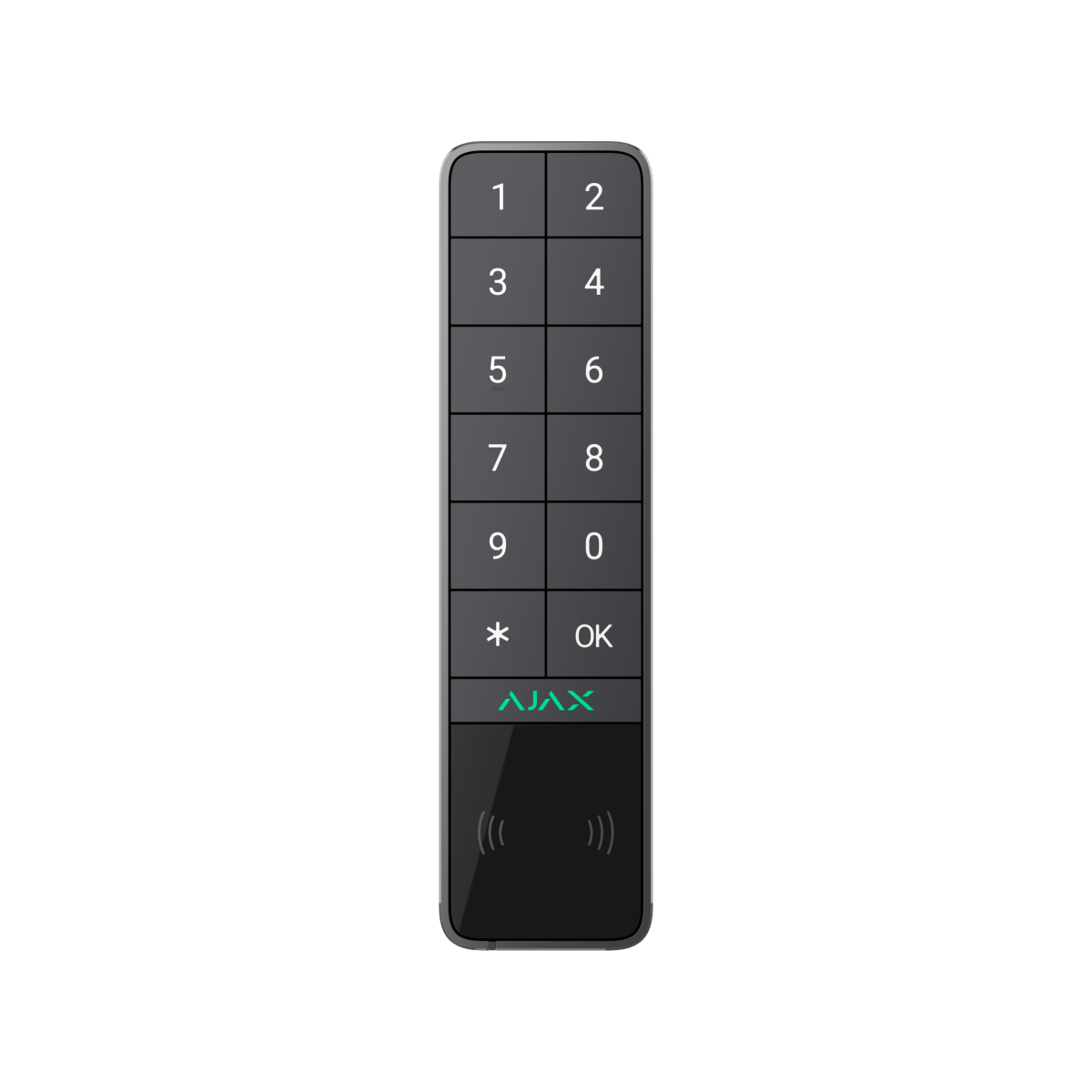

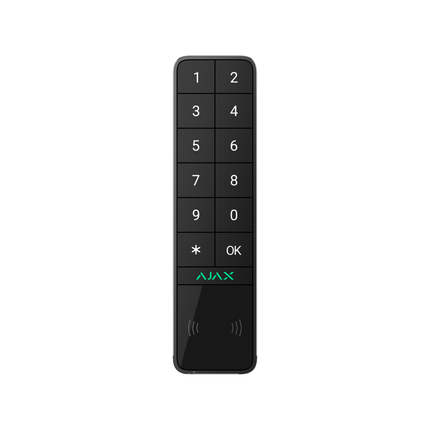

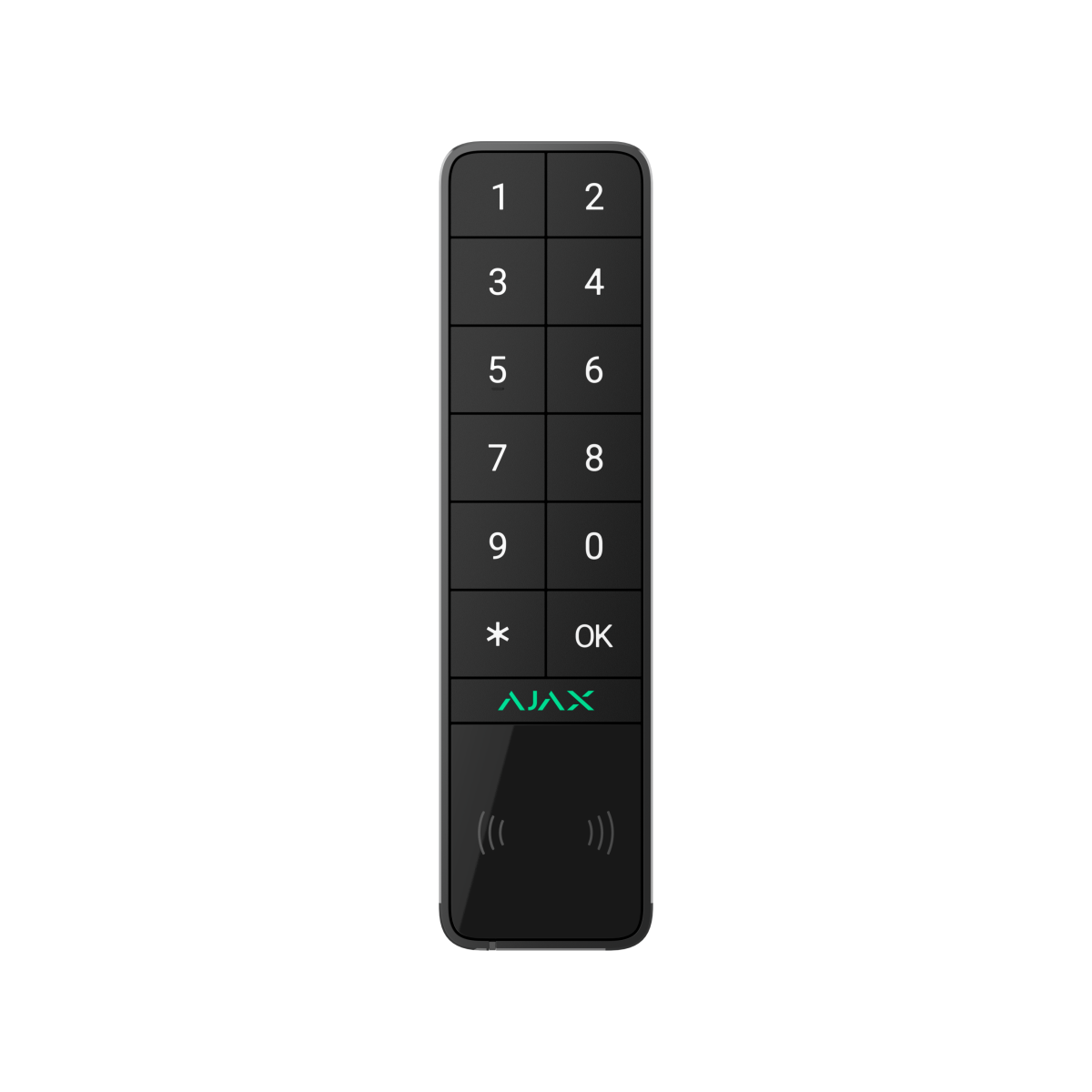

Ajax Systems KeyPad Outdoor Jeweller wireless with DESFire and BLE card reader

The Keypad Outdoor wireless keypad with card reader combines security and management of smarthome devices. Turn the alarm system on and off, activate partitioning, manage specific blocks and run scenarios with a keypad. This can be done by code or wirelessly.

The housing has large, glove-friendly mechanical buttons and, with IP66, is resistant to all conditions and remains fully functional even after a blow or physical damage.

KeyPad Outdoor uses DESFire technology to identify users quickly and securely. It is the best available contactless solution to identify a user from a card or tag. DESFire is based on the international standard ISO 14443 and combines comprehensive 128-bit technology with copy protection.

BLE (Bluetooth Low Energy) is an energy-efficient radio protocol that allows using a smartphone instead of cards or tags.

Specifications:

• Battery: 2x CR123A

• Battery life: up to 3 years

• Power supply (optional): 10.5 - 14 VDC, 1 A

• Jeweller wireless: Yes (868MHz)

• Jeweller max. range: 1700 m

• Wings wireless: No

• Card technology:

  • DESFire® EV1, EV2

  • ISO14443-A (13.56MHz)

• BLE via smartphone: Yes¹

• Operating temperature: -25...+60 °C

• Humidity: up to 80

• IP class: IP66

• IK class: IK08

• Dimensions: 170 x 45 x 31 mm

• Weight: 258 g

• EN50131: Grade 2

• Certified: Yes

• Colors: Black/anthracite gray/white
