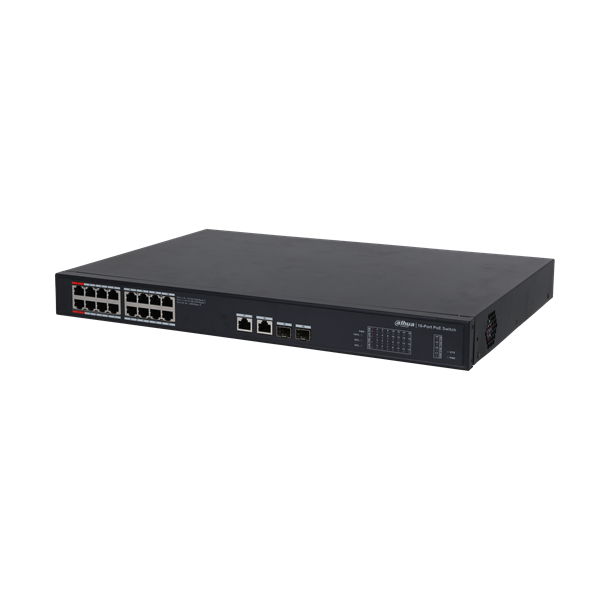

    DH-CS4220-16GT-240 16x PoE Gigabit 2x SFP and 2x RJ45 Uplink

    For reliable and stable operation of a camera system, good network equipment is essential. Dahua has a wide range of switches with a particular focus on video applications. Various switches are available with high throughput, powerful PoE capabilities and optimization functions for video transmission. Available in managed and unmanaged versions, there is a suitable switch for every video application.

    Dahua, 20-port cloud-managed desktop Gigabit switch with 16 × RJ-45 Gigabit PoE ports, 2 × RJ-45 Gigabit ports, 2 × SFP Gigabit ports, port 3-16 ≤ 30 W, port 1-2 ≤ 90 W, total ≤ 240 W, IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3b

    General Information

    Type Switch

    Technical Information

    Extended range on all ports
    Extended range on specific ports
    Maximum operating temperature 55 (deg)
    Minimum operating temperature -10 (deg)
    Number of dedicated RJ45 ports 18
    Number of PoE ports 16
    Number of SFP / Fiber ports 2
    Total PoE Budget 240 (watts)
    PSU included
    Total number of simultaneously usable ports 20
    Management L2 Managed
    Maximum PoE Type PoE++ (802.3bt Type 4 - 90W)
    Power supply type 230 VAC
    Ethernet speeds supported 1GbE base ports
    1GbE uplink(s)
    Type of SFP / Fiber / Combo ports SFP
    Cloud managed

    Physical Characteristics

    Depth 44 (mm)
    Length / Height 440 (mm)
    Weight 2370 (gr)
    Width 220 (mm)
    Form Factor 19" Rack-mountable
    Desktop
