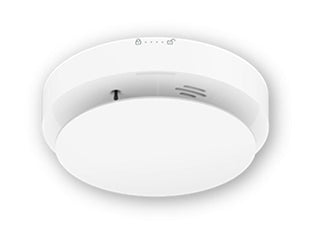

Hikvision DS-PD452SMK-WE – Wireless Smoke, Heat, and CO Detector

The Hikvision DS-PD452SMK-WE is an advanced wireless combination detector that detects smoke, heat, and carbon monoxide (CO) in a single compact device. This detector is designed for integration with the Hikvision AX PRO alarm system and offers a practical solution for enhancing fire safety and providing timely alerts for dangerous CO concentrations in homes and commercial buildings.

Thanks to its photoelectric smoke sensor, the detector detects smoke. In addition, the integrated temperature sensor monitors the environment for dangerous heat and rapid temperature increases. The CO detection function also alerts users to dangerous cumulative exposure to carbon monoxide, a colorless and odorless gas that can pose serious health risks.

The DS-PD452SMK-WE communicates wirelessly via the 868 MHz frequency and uses AES-128 encryption for a secure connection to the alarm system. With a range of up to 1,000 meters in open terrain, the detector offers flexible installation options. It is powered by two replaceable CR123A batteries, with a specified battery life of up to three years.

Thanks to its ceiling-mounted design, wireless operation, and combination of three detection functions, the Hikvision DS-PD452SMK-WE is a versatile addition to a professional security system.

Key Features

• 3-in-1 detection: detects smoke, heat, and carbon monoxide (CO).
• Photoelectric smoke sensor: detects smoke.
• Heat detection: triggers an alarm when the temperature remains above 64 °C or rises by more than 10 °C per minute.
• CO detection: alerts when preset cumulative CO exposure thresholds are exceeded.
• Wireless communication: 868 MHz for integration with the Hikvision AX PRO system.
• Secure connection: AES-128 encryption.
• Long range: up to 1,000 meters in open field.
• Battery power: 2 × CR123A, with a battery life of up to three years.
• Easy installation: wireless ceiling mount for indoor use.
• Compact design: available in white and black.

Technical Specifications

• Brand: Hikvision
• Model: DS-PD452SMK-WE
• Product type: wireless smoke, heat, and CO detector
• Detection methods: photoelectric smoke detection, temperature detection, and CO detection
• Wireless frequency: 868 MHz
• Wireless range: up to 1,000 meters in open field
• Communication security: AES-128 encryption
• Power supply: 2 × CR123A batteries
• Battery life: up to 3 years
• Mounting: ceiling mount
• Dimensions: Ø 125 × 39 mm
• Weight: approximately 251 grams, including batteries
• Operating temperature: -10 °C to +55 °C
• Maximum relative humidity: 95%
• Color: white or black
• Compatibility: Hikvision AX PRO alarm system

The Hikvision DS-PD452SMK-WE combines three key detection functions in a single wireless detector, making it a suitable choice for anyone looking to integrate fire and CO detection into a Hikvision AX PRO security system.
