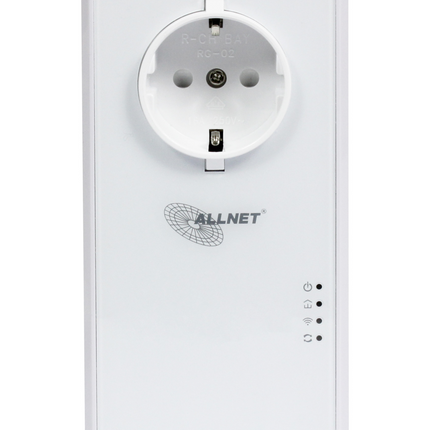

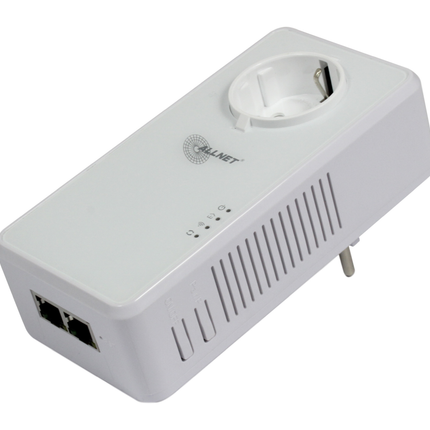

ALLNET Powerline adapter HomePlugV2 1200Mbit RJ45 WiFi SmartLink

The ALLNET ALL1681203 SmartLink is a powerful Powerline adapter that enables network connectivity over the existing electricity network. Thanks to the latest HomePlug AV2 technology and integrated PoE+ functionality, this adapter offers a fast, stable and flexible networking solution for homes, offices and professional installations. With data rates up to 1200 Mbps and support for Gigabit Ethernet, the ALL1681203 is ideal for IP cameras, VoIP phones, access points and other network devices that require both data and power over a single network cable. suitable for surveillance cameras, digital displays, network devices and IoT applications. ation in existing installations is easy. VoIP phones, access points and PoE equipment Security: 128-bit AES encryption thus an efficient solution for extending network connections without installing new cabling

Specifications:

• Product Number: ALL1681203
• Technology: HomePlug AV2 SmartLink
• Maximum Powerline Speed: up to 1200 Mbps
• Ethernet Port: 1× Gigabit RJ45 (10/100/1000 Mbps)
• PoE Support: IEEE 802.3at (PoE+)
• Maximum PoE power: 30 watts
• Chipset: Qualcomm QCA7500 + QCA8334
• MIMO support: Yes
• Frequency range: 2 - 68 MHz
• Modulation technology: OFDM, BPSK, QPSK, 8/16/64/256/1024/4096-QAM
• Security: 128-bit AES encryption
• Quality of Service (QoS): Yes
• IGMP support: Yes
• Maximum number of adapters: 15
• Compatibility: IEEE 1901, IEEE 1905.1, HomePlug AV and HomePlug AV2
• Power supply voltage: 85 - 265 V AC
• PoE output: 48 V DC, max. 30 W
• Maximum PoE cable length: 100 meters (Cat5e/Cat6)
• LED indicators: Power, Powerline Link/Activity, Ethernet Link/Activity
• Operating temperature: 0°C to 40°C
• Storage temperature: -25°C to 70°C
• Dimensions: 115 × 65 × 30 mm
• Weight: approximately 300 grams
• Certifications: CE, RoHS
