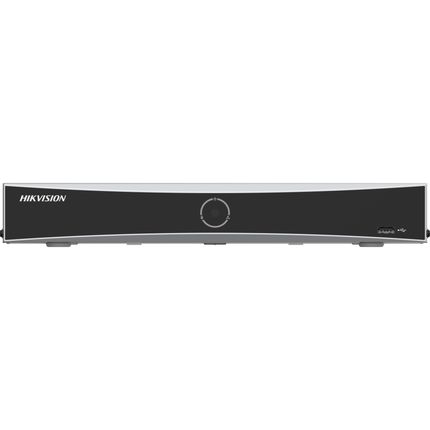

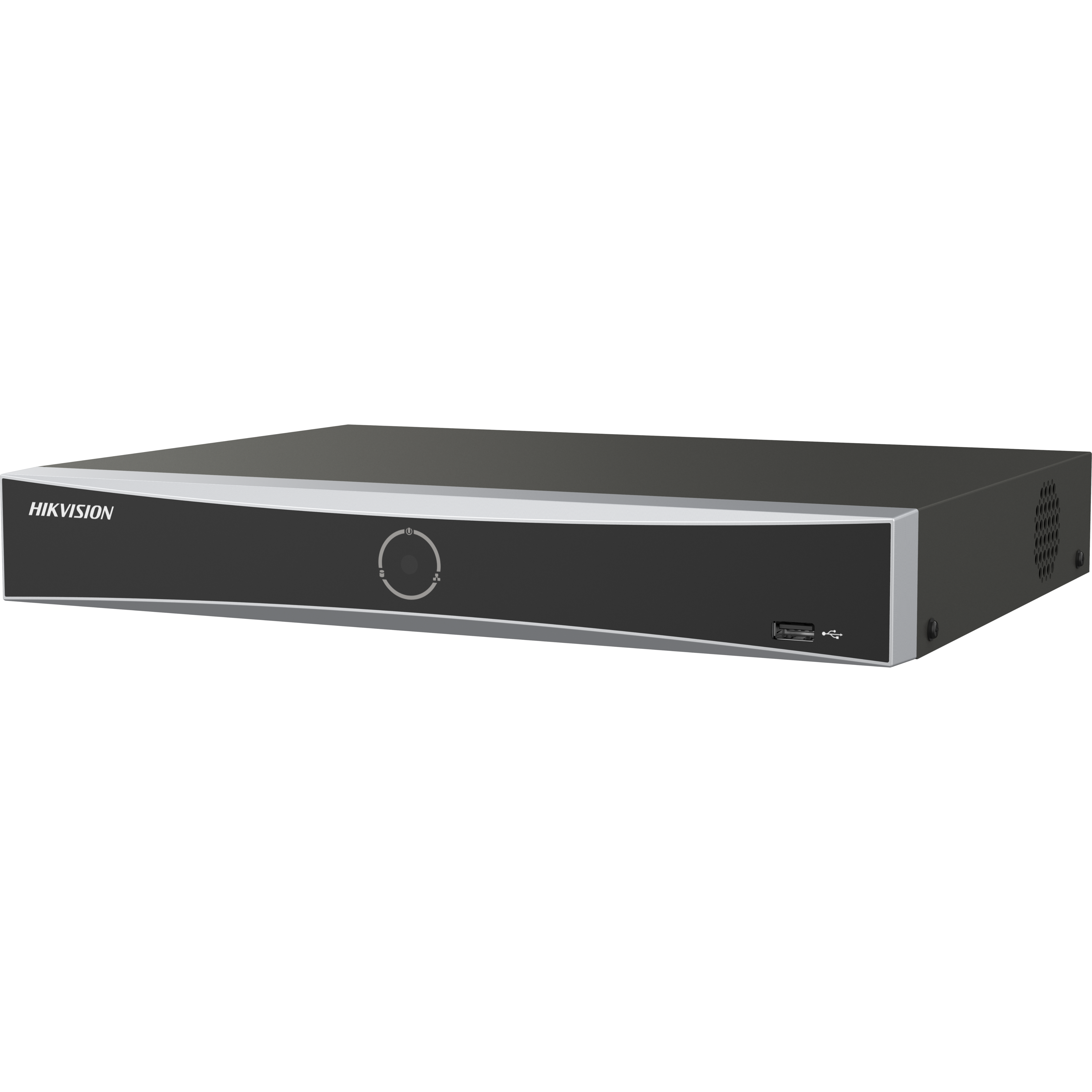

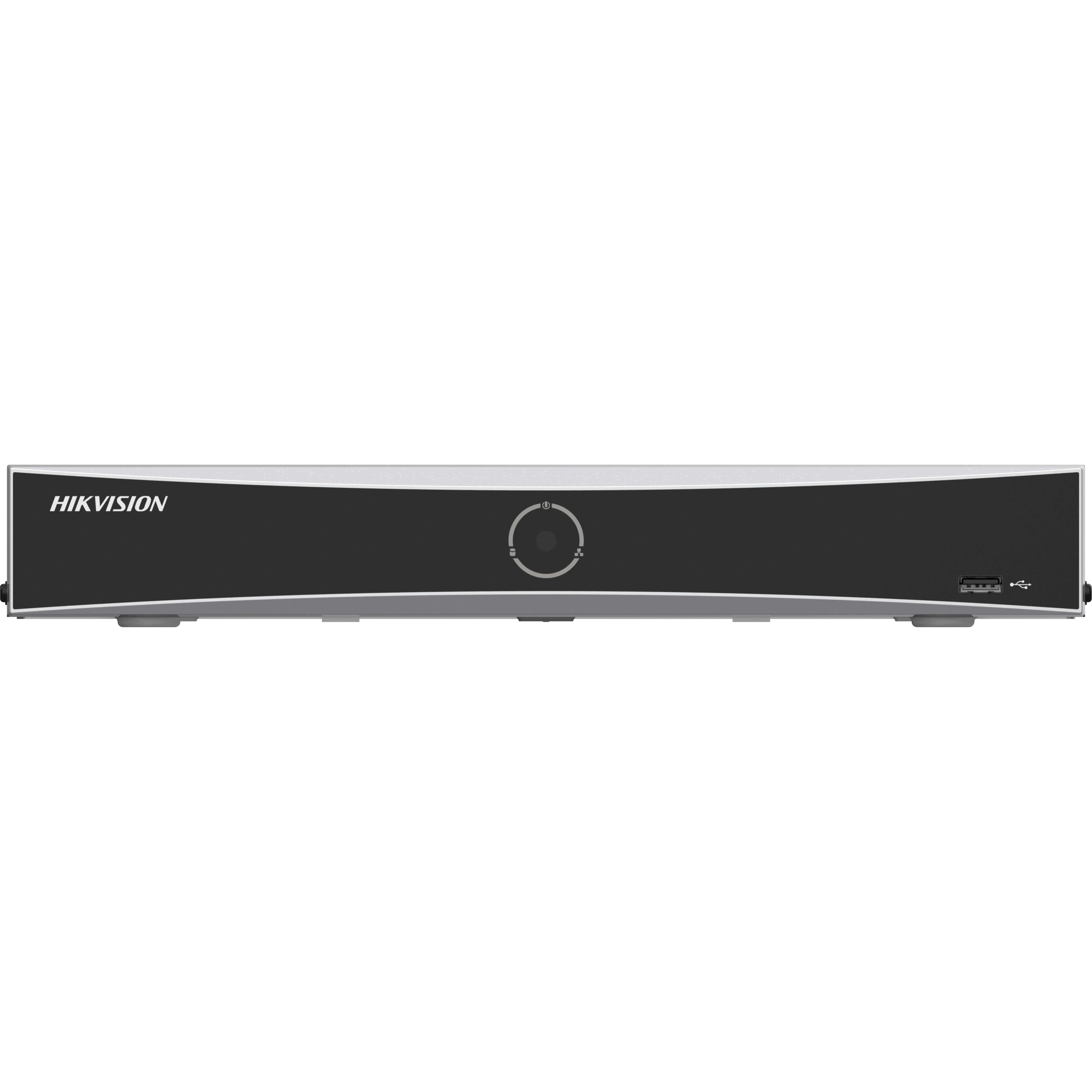

The Hikvision DS-7604NXI-K1/VPRO is a powerful 4-channel network video recorder (NVR) from the professional VPro series, designed for advanced security solutions where smart analytics and reliability are key. With integrated AI functionalities such as AcuSense and AcuSeek, this recorder provides efficient and accurate monitoring for both business and residential applications.
🧠
Smart AI Security
The DS-7604NXI-K1/VPRO uses Hikvision's AcuSense technology to distinguish between people and vehicles. This significantly reduces false alerts and you only receive relevant notifications. Features such as facial recognition, perimeter detection and Motion Detection 2.0 ensure an intelligent and reliable security system.
In addition, AcuSearch and AcuSeek allow you to quickly find specific events or people in recordings, which greatly increases the efficiency of video management.
🎥 Powerful performance and image quality
This NVR supports up to 4 IP cameras and can process images up to 12MP resolution. With support for H.265+ compression, images are stored efficiently without loss of quality. The 4K HDMI output provides razor-sharp live images and playback on high-resolution screens.
⚡ Easy installation and use
Thanks to automatic camera configuration and plug-and-play functionality, installation is quick and easy. The recorder automatically detects connected cameras and configures them instantly, saving installation time and minimizing errors.
🔍 Advanced search and analysis capabilities
With support for face recognition (up to 50,000 faces in database) and intelligent search functions, you can perform targeted searches for people, vehicles or specific events. This makes the recorder particularly suitable for environments where fast incident analysis is important.
- AI detection of people and vehicles (AcuSense).
- Fast retrieval functions with AcuSearch & AcuSeek
- Support for cameras up to 12MP
- 4K HDMI output for sharp viewing
- Automatic installation and configuration
- Suitable for professional and business applications
Specifications:
🎥 Video & recording
- Number of channels: 4 IP cameras
- Maximum resolution: up to 12 MP
- Video compression: H.265+, H.265, H.264+, H.264
- Incoming bandwidth: 40 Mbps
- Outgoing bandwidth: 80 Mbps
- Recording resolutions: 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p and below
- Synchronous playback: 4 channels
🤖 AI & intelligent features
- AcuSense technology (human and vehicle detection)
- Face recognition:
- Up to 16 libraries
- Up to 50,000 faces total
- Perimeter security (line crossing / intrusion detection)
- Motion Detection 2.0 (smart motion detection)
- AcuSearch & AcuSeek (smart search in recordings)
- Support for ANPR and VCA via cameras
⚡ Decoding & performance
- Decoding capability:
- AI on: 12 channels @ 1080p (30 fps)
- AI off: 24 channels @ 1080p (30 fps)
- Max decoding:
- 3-ch @ 12MP
- 6-ch @ 8MP
- 12-ch @ 4MP
- Stream type: video + audio
🖥️ Video outputs
- HDMI: up to 4K (3840 × 2160) @ 30Hz
- VGA: up to 1080p
- Independent HDMI/VGA output
🔊
Audio
- 1x audio input (RCA, two-way audio)
- 1x audio output (RCA)
- Audio compression: G.711, G.722, G.726, AAC, MP2L2
🌐 Network
- 1x RJ-45 Gigabit Ethernet (10/100/1000 Mbps)
- Up to 128 simultaneous users
- Supported protocols: TCP/IP, DHCP, IPv4/IPv6, RTSP, HTTPS, ONVIF et al.
💾
Storage & connections.
- 1x SATA connection
- Max. storage capacity: up to 16 TB
- USB:
- 1x USB 2.0 (front)
- 1x USB 2.0 (rear)
- Alarm in/out: 4 / 1
⚙️ General
- Power supply: 12 VDC, 1.5 A
- Consumption: ≤ 10W (without HDD)
- Operating Temperature: -10°C to +55°C
- Humidity: 10% - 90%
- Dimensions: 319 × 239 × 48 mm
- Weight: ≤ 1.2 kg (without HDD)
